Lus Taw Qhia
Cov lype no tuaj yeem ua haujlwm thiab ua haujlwm, Vim muaj kev tsim tshwj xeeb, yog li nws tsim nyog rau fuidic lossis qis -luidity cov ntaub ntawv, xws li condiment.cosmetic, kas fes hmoov, dej haus, tshuaj veterinary, dexrose, tshuaj, hmoov additive, talcum hmoov, tshuaj tua kab ua liaj ua teb, dyestuf.
Yog koj xav tau ibtag nrho tsis siv neeg 25kg hmoov ntim kab, nyem qhov no kom paub ntau ntxiv. Nws koom ua ke ua tiav cov txheej txheem ntim hmoov nrog rau lub hnab tsis siv neeg clamping, lub hnab qhib, txhaws, sealing thiab hnab xaws.
Tshuab Parameters
|
Qauv |
DJ-1B3+75W |
|
Kev ntsuas ntsuas hom |
Auger filling, Hnab npuaj tes hnyav |
|
Pob Luj |
1-25kg hloov tau (los ntawm kev hloov auger txuas) |
|
Pob raug |
± 0.2-1% (raws li cov khoom siv) |
|
Ntim ceev |
1-3bags / min |
|
Fais fab mov |
380V 50Hz / 60Hz (Customizable 220V lub cev muaj zog) |
|
Hopper Volume |
75L |
|
Tag Nrho Lub Zog |
2 kW ib |
|
Zuag qhia tag nrho Dimensions |
1200 × 900 × 2500 hli |
|
Kev Ua Haujlwm Style |
Siemens PLC tswj qhov system, 5.7 nti muaj yeeb yuj kov npo |
Cov Khoom Muag Khoom Muag
50L Txhua SUS 304 sab qhib hopper

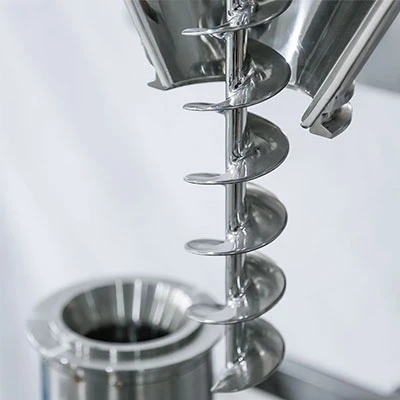

tag nrho welded thiab polished ntsia hlau, hloov rau qhov sib txawv filling hnyav
Cov khoom sib tov ua kom cov hmoov poob qis, tsis txhob lo rau ntawm phab ntsa. Cov qauv yooj yim, du thiab tsis muaj kaum sab hauv, yooj yim los ntxuav thiab ua haujlwm.
Siemens kov npo, tuaj yeem tso ob lub luag ntawm lub vijtsam
Ib txheej ntawm qhov hnyav, qhov hnyav thaum sau, Ua kom raug zoo
Qhov siab tuaj yeem hloov kho los ntawm phau ntawv
Feature
Lub Pneumaic clamping thiab iing system yog ntsia rau ntawm qhov hnyav sensor, raws li ua ntej - teem lub hom phiaj hnyav kom nws ua rau lub tshuab ua kom ceev ceev thiab maj mam ua ntaub ntawv. Thiab lub siab rhiab hnyav qhov system ua kom cov ntaub ntawv raug siab.
Nrog servo lub cev muaj zog thiab servo tsav tswj auger, rm nws perfos stably thiab nrog cov neeg siab.PLC tswj, kov npo zaub, yooj yim rau kev khiav lag luam.
Txheej txheem: muab bagican (container) rau ntawm lub tshuab-, thawv nce -fling fling, thawv declines-* nyhav mus txog lub pre-set weightslo'w filling-weightreaches lub hom phiaj hnyav nqa lub thawv tawm manually
Nco tseg: lub hnab pneumatic - cov khoom siv clamp thiab tuaj yeem- tuav cov txheej txheem yog xaiv tau, tsim nyog rau lub hnab ntim khoom yooj yim.
Ob hom kev ua haujlwm: fillingDy ntim (siab ceev) & sau los ntawm qhov hnyav (siab raug)
Product Structure Diagram
Cov Khoom Muaj Duab Duab
